Study: Unlocking superior accuracy with advanced BDS services
By Zhetao Zhang, Hao Wang, and Yuanxi Yang
The development of an Integrated Real-Time Precise Point Positioning (InRPPP) system leveraging the BeiDou Navigation Satellite System (BDS) B2b, B2a, and B1C services has significantly enhanced satellite-based positioning accuracy. By resiliently utilizing these augmentation messages, the InRPPP system corrects satellite orbit and clock errors and mitigates ionospheric delays, outperforming traditional methods.
Experimental results from both static and kinematic conditions demonstrate superior performance, showing improved positioning accuracy, faster convergence times, and greater stability in challenging environments. This breakthrough offers potential for applications in real-time navigation, precision positioning, and disaster monitoring, with a broader impact on industries requiring reliable and continuous positioning data.
The implications of the InRPPP system are vast, with applications spanning multiple sectors that depend on high-precision satellite navigation. Satellite-based navigation systems, like Real-Time Precise Point Positioning (RTPPP), are crucial for many industries that require accurate location data. However, these systems face limitations in areas with weak internet connectivity or signal interference.
BeiDou’s satellite augmentation services—namely B2b, B2a, and B1C—have emerged as a promising solution. Yet, integrating these services into one cohesive system for optimal performance remained unexplored until now. This study pioneers the Integrated InRPPP system, which combines all three services to correct satellite clock and orbit errors as well as ionospheric delays, unlocking new levels of positioning accuracy.
The results address critical limitations in current satellite-based positioning technology, setting the stage for real-world applications in complex environments.
Published in the 2025 Satellite Navigation journal (DOI: 10.1186/s43020-025-00172-x), researchers from the State Key Laboratory of Geo-Information Engineering, the Key Laboratory of Surveying and Mapping Science and Geospatial Information Technology of MNR, the State Key Laboratory of Spatial Datum, and Hohai University introduced the InRPPP system—a new approach leveraging the B2b, B2a, and B1C services of the BeiDou system.
By combining these services, the InRPPP system corrects satellite orbit and clock errors while mitigating ionospheric delays. With enhanced accuracy, stability, and faster convergence times, this system has the potential to transform satellite-based positioning, offering more reliable and continuous service in real-time applications—especially in environments where traditional positioning systems struggle.

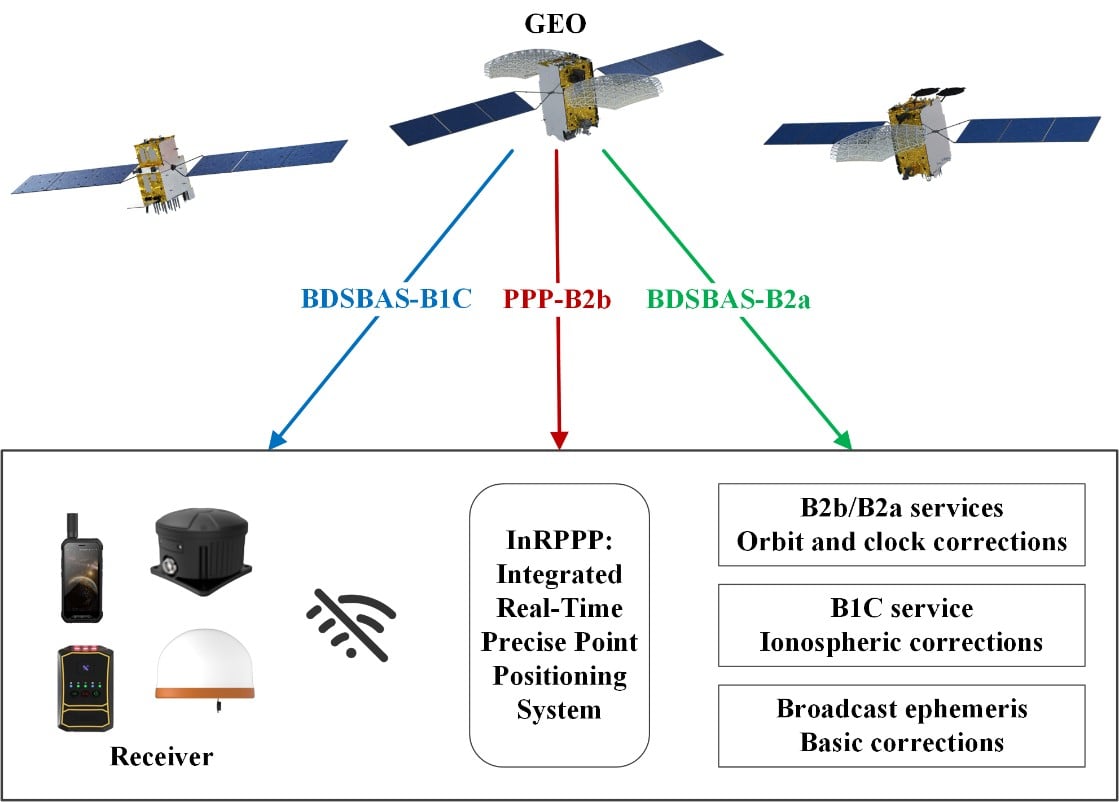

### How the InRPPP System Works
The InRPPP system brings a new level of precision to satellite navigation by combining the best features of BeiDou’s B2b, B2a, and B1C services. Through this integration:
– B2b and B2a services correct satellite orbit and clock errors.
– B1C service addresses ionospheric delays.
This resilient approach allows the system to deliver superior performance even in high-occlusion or remote environments.
### Performance Highlights
Static experiments demonstrate that the InRPPP system surpasses other methods, achieving:
– A 59.6% improvement in positioning accuracy.
– A 65.9% reduction in convergence time compared to using B2b, B2a, or B1C individually.
Under dynamic conditions, the system showed enhanced stability and reduced signal interruptions, resulting in up to a 34.3% improvement in accuracy.
The integration of these services also increases the number of visible satellites, which enhances the Position Dilution of Precision (PDOP) values and ensures better satellite geometry. This not only improves accuracy but also guarantees continuous, reliable solutions.
### Real-World Impact and Applications
The InRPPP system is a game-changer for fields such as geodesy, navigation, and disaster monitoring. Academician Yuanxi Yang of the Chinese Academy of Sciences, the lead researcher behind the InRPPP system, remarked:
> “The ability to integrate multiple BeiDou augmentation services into a single real-time positioning system represents a major breakthrough. By leveraging B2b, B2a, and B1C, our system offers a more reliable and accurate solution than anything available today.”
In both static and kinematic tests, the InRPPP system has outperformed traditional positioning methods, demonstrating robustness and resilience in environments where signal conditions are far from ideal.
The system is already being applied in practical scenarios and holds the potential to reshape industries reliant on satellite navigation and positioning.
### Broader Implications
The potential applications of the InRPPP system span multiple sectors that demand high-precision satellite navigation, including:
– Autonomous vehicles
– Precision agriculture
– Disaster management
– Geospatial services
The enhanced accuracy and stability offered by InRPPP can support real-time decision-making in critical environments and improve the resilience of navigation systems in regions with poor satellite visibility or signal interference.
As technology advances, the InRPPP system could pave the way for even more robust solutions, advancing global sustainability goals and improving disaster response capabilities by providing uninterrupted, reliable positioning data.
—
The Integrated Real-Time Precise Point Positioning system marks a significant stride forward in satellite navigation technology, promising unprecedented accuracy, reliability, and stability for a wide range of real-world applications.
